Build individual 5x5 show pig pens, sheep pens, and goat pens for swine, sheep, or goats with galvanized PS05 panels and matching WS05 walk-through gates. Choose a side-by-side row or a back-to-back layout for your show barn, fairground, or livestock facility.
PS05 PANELS & WS05 GATES
Questions about a show pen layout? Call 1-800-343-1026.

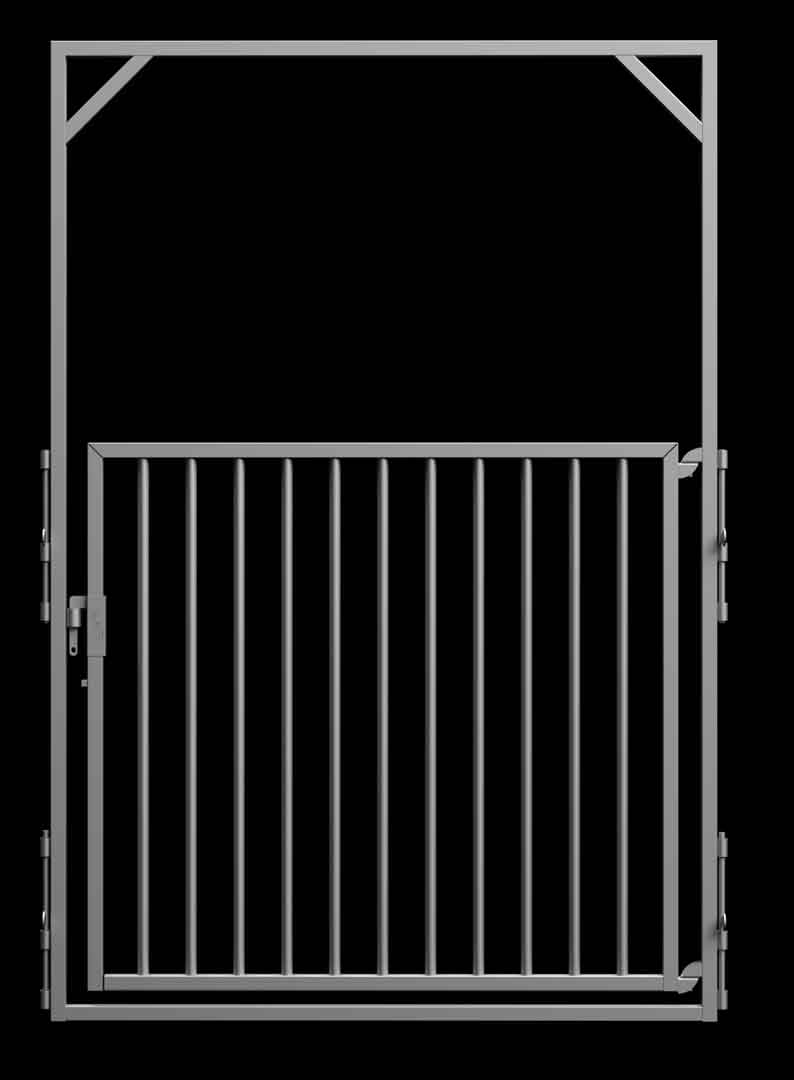

Gate Body Height - 49"
Arch Height - 82"
Gate Width - 5'
Arch Frame- 1-1/4" Square Tubing 16 ga miter cut
Frame - 1-1/4" Square Tubing 16 ga miter cut
11 Vertical Bars - 1" Round Tubing, 16 ga, saw cut
Spacing between bars: 3.85"
Gate connects to panels with permanently attached drop pins.
Gate latch uses a self-contained drop pin.
Approx. Weight - 66 lbs
Key Features - Galvanized; stacks flat
Primary Use - Sheep, goats, and swine in a show barn setting

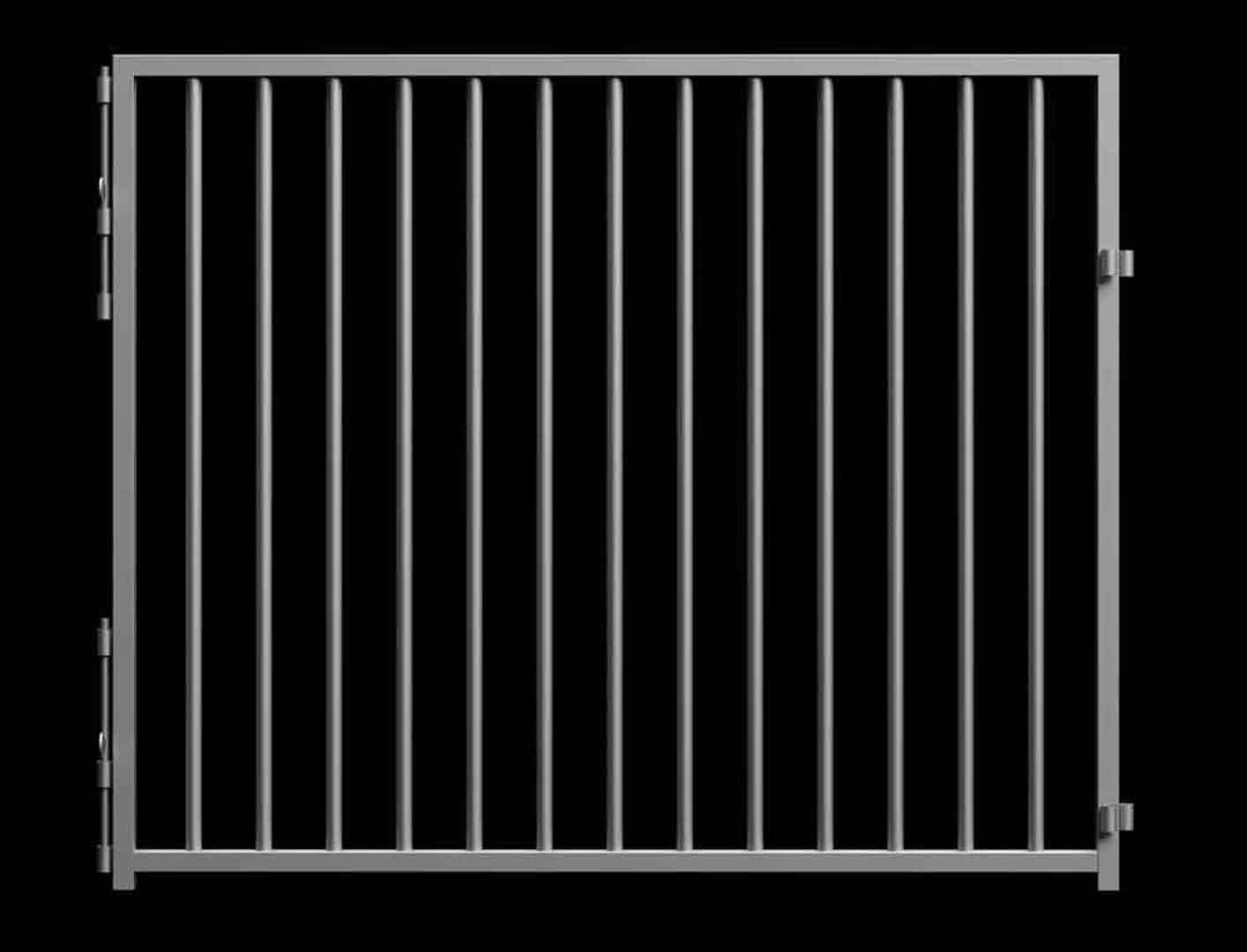

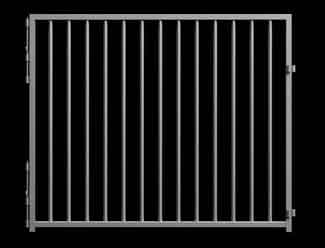

PS05 panels use vertical galvanized steel bars with 3.85" spacing, and the matching WS05 gates give each pen a 5' wide walk-through opening. The gate body is 49" tall and its arch reaches 82". Permanently attached drop pins connect the pieces. Compare the package layouts below to see the number of panels and gates supplied for each group of 5x5 livestock show pens.

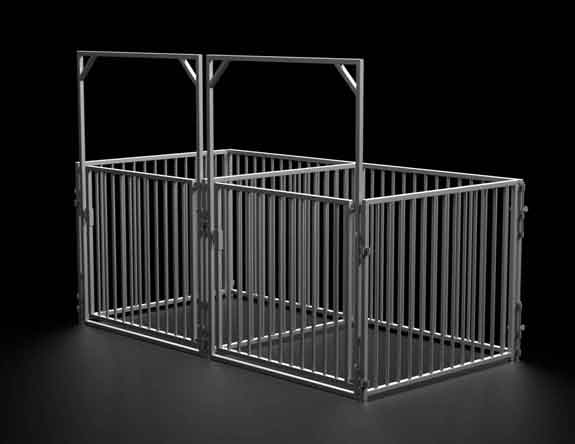

SHOW BARN - 2 SIDE BY SIDE
Five PS05 panels and two WS05 gates form two side-by-side 5x5 livestock show pens.
Compare the PS05 panel, WS05 gate, and package layouts before ordering 5x5 livestock show pens.
Each pen in the listed packages is described as 5x5. The PS05 panel is 5 feet long and 49 inches tall. Package sizes refer to the number of pens in the connected layout, such as two side by side or ten back to back.
Each package table gives the exact PS05 panel and WS05 gate count. For example, the two-pen side-by-side layout includes five panels and two gates. The twenty-pen back-to-back layout includes thirty-two panels and twenty gates. Check the table for the layout you want.

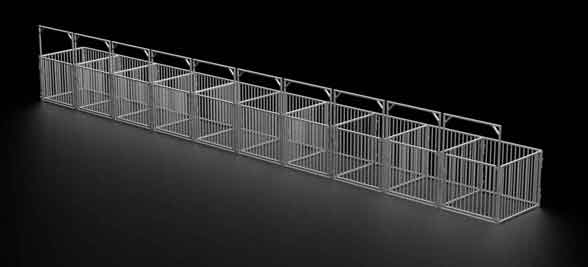

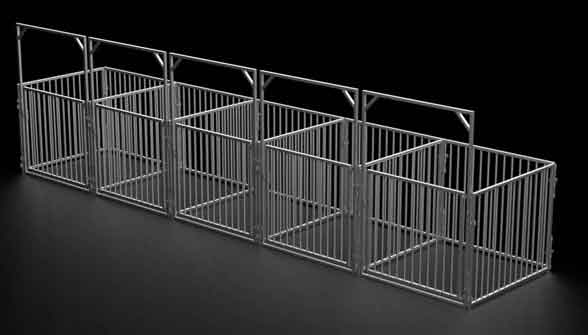

Side-by-side packages place the 5x5 pens in one row. Back-to-back packages arrange two rows that share a dividing run. This changes the number of panels needed for a given number of pens, so compare the package image and count before ordering.
The WS05 gate body is 49 inches tall, matching the panel height. Its arch reaches 82 inches. The gate is 5 feet wide. These are separate measurements, so the 82-inch arch height does not describe the height of the entire gate opening.
The panels and gates connect using permanently attached drop pins. The WS05 gate has a self-contained drop-pin latch. The connection design makes it possible to arrange the pieces into the listed side-by-side and back-to-back layouts.
Yes. The PS05 panels and WS05 gates are presented for swine and sheep, as well as goats, in show barn settings. The galvanized vertical bars have stated spacing of 3.85 inches. Consider the size and behavior of your animals and the needs of your facility when choosing a setup.
Yes. Divide the displayed package price by the number of pens in its layout. Larger connected layouts share panels and can use fewer panels per pen. The total price on this page is supplied by the live PHP pricing function; the Shopify listing shows the package price.
The listed show barn packages include free shipping to the lower 48 states. Review the linked Shopify product and shipping policy for current delivery and unloading details, or call Red River Arenas at 1-800-343-1026 before placing a facility order.
