Build a smoother path from the holding pen to the squeeze chute with galvanized cattle-handling equipment designed for better flow, visibility, and control.
Choose a complete Rancher cattle working system with a Top Hand Self-Catch Squeeze Chute, a tub and alley package for an existing chute, or the individual components needed to complete your setup.
Compare the Rancher Standard, Rancher Classic, and Rancher Ultimate complete systems or our Standard, Classic, and Ultimate Tub & Alley Packages. Individual 180° open and sheeted crowding tubs and 10' open, sheeted straight, and adjustable cattle alleys are also available.
Complete systems, tub and alley packages, crowding tubs, and cattle alleys shown on this page include FREE SHIPPING.
Compare our three complete systems based on visibility, cattle-flow control, and alley adjustability.
The Open-Rail System - Our most economical complete system, with an open tub and open alley for visibility and access.
The Sheeted Straight-Alley System - A sheeted tub and fixed-width sheeted alley help reduce distractions and encourage forward movement.
The Adjustable-Alley System - Our most versatile system, with a sheeted tub and an alley that adjusts from 18" to 32-1/4".
Already have a squeeze chute? Choose a complete tub and alley package designed to connect to your existing cattle-working setup.
The Open-Rail Package - Our most economical option, with a 180° open crowding tub and 10' straight open alley.
The Sheeted Straight-Alley Package - A sheeted crowding tub and fixed-width sheeted straight alley help reduce outside distractions.
The Adjustable-Alley Package - Our most versatile tub and alley option, with a sheeted crowding tub and an alley that adjusts from 18" to 32-1/4".
Already have part of your cattle-working setup? Shop individual crowding tubs and cattle alleys below.
Our most economical complete cattle working system
The Rancher Standard combines the Top Hand Self-Catch Squeeze Chute with a 180° open cattle crowding tub and a 10' straight open alley. This complete system creates a direct path from the holding area through the tub and alley to the squeeze chute.

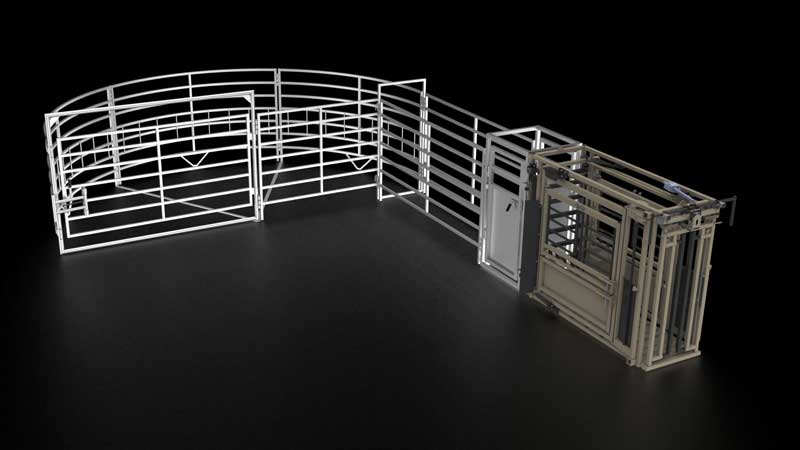

The Rancher Standard Cattle Working System
Click image to enlarge
Shown with optional palpation cage
The open-sided tub and alley allow handlers to see cattle throughout the system and provide access while animals move toward the chute. This makes the Rancher Standard a practical choice for ranchers who value visibility and want a complete cattle-working setup at the lowest price of our three Rancher systems.
The 180° open crowding tub measures approximately 20' across by 10' deep. Its locking sweep gate guides groups of cattle toward the alley entrance and holds its position to discourage cattle from pushing the gate backward.
180° Open Cattle Crowding Tub
Click image to enlarge
Two 10' open alley panels create a fixed-width, single-file path from the tub to the squeeze chute. Open rails provide visibility and access, while fishhook connections make the alley straightforward to connect to the tub and chute.
The Top Hand Squeeze Chute features a self-catch headgate that opens fully inward and outward. Split upper and lower access doors on both sides provide access to the animal, while dual emergency access helps handlers respond when needed.
Palpation Cage - Adds protected access directly behind the squeeze chute.
Additional 10' Straight Open Alley - Extends the included alley to 20' or longer.
Please Note: The palpation cage shown in some images is optional and is not included in the base system price. Add-ons may be selected on the Shopify product page.
|
||||||
The crowding tub can be assembled in either a left- or right-hand configuration to fit your cattle-working layout. No direction selection is required when ordering.
The tub and alley ship unassembled; assembly is required.
Sheeted cattle control with a simple fixed-width alley
The Rancher Classic combines the Top Hand Self-Catch Squeeze Chute with a 180° sheeted cattle crowding tub and a 10' sheeted straight alley. The sheeted lower sides help limit outside distractions and encourage cattle to continue moving toward the squeeze chute.

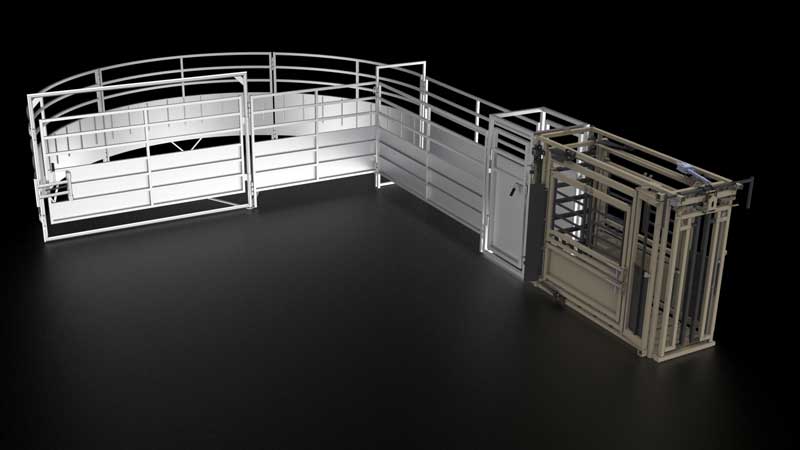

The Rancher Classic Cattle Working System
Click image to enlarge
Shown with optional palpation cage
The sheeted crowding tub and lower alley sides help reduce outside distractions as cattle move through the system. Open upper rails preserve visibility and access for handlers while the solid lower sections create a more defined path toward the squeeze chute.
The 180° sheeted crowding tub measures approximately 20' across by 10' deep. Its locking sweep gate guides groups of cattle toward the alley entrance and holds its position to discourage cattle from pushing the gate backward. Solid sheet-metal sides help keep cattle focused on the path ahead.
Two 10' sheeted alley panels create a fixed-width, single-file path from the tub to the squeeze chute. Solid lower sides help limit distractions, while open upper rails provide visibility and access. Fishhook connections make the alley straightforward to connect to the tub and chute.
The Top Hand Squeeze Chute features a self-catch headgate that opens fully inward and outward. Split upper and lower access doors on both sides provide access to the animal, while dual emergency access helps handlers respond when needed.
Palpation Cage - Adds protected access directly behind the squeeze chute.
Additional 10' Sheeted Straight Alley - Extends the included alley to 20' or longer.
Please Note: The palpation cage shown in the image is optional and is not included in the base system price. Add-ons may be selected on the Shopify product page.
|
||||||
The crowding tub can be assembled in either a left- or right-hand configuration. When assembled opposite the configuration shown, the sheet metal will face the opposite direction; this does not affect the tub's operation.
The tub and alley ship unassembled; assembly is required.
Our most complete cattle working system with an adjustable alley
The Rancher Ultimate combines the Top Hand Self-Catch Squeeze Chute with a 180° sheeted cattle crowding tub and a 10' adjustable sheet-metal alley. The sheeted system helps reduce outside distractions, while the adjustable alley can be narrowed or widened for calves and mature cattle.
The Rancher Ultimate Cattle Working System
Click image to enlarge
Shown with optional palpation cage
The Rancher Ultimate provides sheeted cattle flow through the crowding tub and lower alley sides while preserving handler visibility through the open upper rails. Its adjustable alley adds flexibility for working cattle of different sizes without requiring a separate alley system.
The 180° sheeted crowding tub measures approximately 20' across by 10' deep. Its locking sweep gate guides groups of cattle toward the alley entrance and holds its position to discourage cattle from pushing the gate backward. Solid sheet-metal sides help reduce distractions and keep cattle focused on the path ahead.
The 10' adjustable alley can be narrowed or widened to accommodate calves and mature cattle. The top and bottom adjust independently, allowing the alley to be set straight or tapered. Solid lower sides help limit distractions, while open upper rails provide visibility and access for handlers.
A chain-suspended no-back butt bar helps discourage cattle from backing out of the alley. Fishhook connections make the alley straightforward to connect to the crowding tub and squeeze chute.
The Top Hand Squeeze Chute features a self-catch headgate that opens fully inward and outward. Split upper and lower access doors on both sides provide access to the animal, while dual emergency access helps handlers respond when needed.
The Rancher Ultimate Cattle Working System
Click image to enlarge
Shown with optional palpation cage
Palpation Cage - Adds protected access directly behind the squeeze chute.
Additional 10' Adjustable Sheet-Metal Alley - Extends the included alley to 20' or longer.
Please Note: The palpation cage shown in some images is optional and is not included in the base system price. Add-ons may be selected on the Shopify product page.
|
||||||
The crowding tub can be assembled in either a left- or right-hand configuration. When assembled opposite the configuration shown, the sheet metal will face the opposite direction; this does not affect the tub's operation.
The tub and alley ship unassembled; assembly is required.
Our most economical tub and alley package
The Standard Tub & Alley Package combines a 180° open cattle crowding tub with a 10' straight open alley. This open-rail system provides a direct path from the holding pen toward your existing squeeze chute while preserving visibility and access throughout the tub and alley.

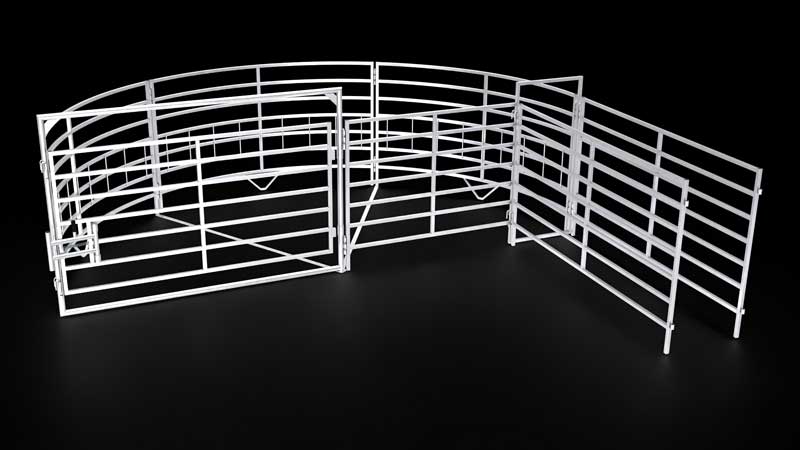

Standard Tub & Alley Package
Click image to enlarge
The open-sided construction allows handlers to see and access cattle throughout the tub and alley. This package is a practical choice for ranchers who want an economical way to add a complete cattle-flow system to an existing squeeze chute.
The half-circle crowding tub measures approximately 20' across by 10' deep. Its spring-loaded locking sweep gate guides cattle toward the alley entrance and holds its position to discourage cattle from pushing the gate backward.
Two 10' open alley panels create a fixed-width, single-file path toward the squeeze chute. Open rails provide visibility and access, while fishhook connections make the alley straightforward to connect to the tub and compatible cattle-working equipment.
Palpation Cage - Adds protected access directly behind a compatible squeeze chute.
Additional 10' Straight Open Alley - Extends the included alley to 20' or longer.
Please Note: This package includes the crowding tub and alley only. A squeeze chute and palpation cage are not included in the base package price.
|
||||||
The crowding tub can be assembled in either a left- or right-hand configuration to fit your cattle-working layout. No direction selection is required when ordering.
The tub and alley ship unassembled; assembly is required.
Sheeted cattle control with a fixed-width alley
The Classic Tub & Alley Package combines a 180° sheeted cattle crowding tub with a 10' sheeted straight alley. The sheeted lower sides help reduce outside distractions and create a more controlled path from the holding pen toward your existing squeeze chute.

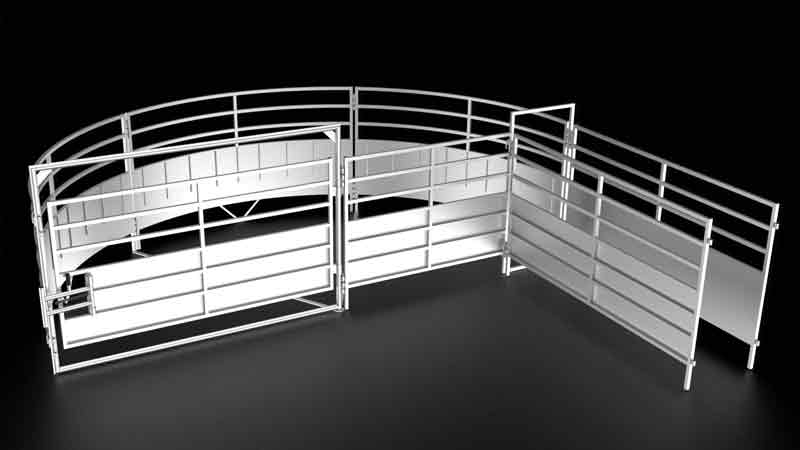

Classic Tub & Alley Package
Click image to enlarge
The sheeted lower sides help reduce outside distractions as cattle move through the tub and alley. Open upper rails preserve visibility and provide handler access without sacrificing the more controlled feel of a sheeted system.
The half-circle crowding tub measures approximately 20' across by 10' deep. The lower portion of the tub panels and sweep gate is covered with 14-gauge galvanized sheet metal. Its spring-loaded locking sweep gate guides cattle toward the alley and discourages them from pushing the gate backward.
Two 10' sheeted alley panels create a fixed-width, single-file path toward the squeeze chute. Solid lower sides help keep cattle focused, while open upper rails provide visibility and access. Fishhook connections make the alley straightforward to connect to the tub and compatible cattle-working equipment.
Palpation Cage - Adds protected access directly behind a compatible squeeze chute.
Additional 10' Sheeted Straight Alley - Extends the included alley to 20' or longer.
Please Note: This package includes the crowding tub and alley only. A squeeze chute and palpation cage are not included in the base package price.
|
||||||
The crowding tub can be assembled in either a left- or right-hand configuration. When assembled opposite the configuration shown, the sheet metal will face the opposite direction; this does not affect the tub's operation.
The tub and alley ship unassembled; assembly is required.
Our most versatile tub and alley package
The Ultimate Tub & Alley Package combines a 180° sheeted cattle crowding tub with a 10' adjustable sheet-metal cattle alley. The sheeted lower sides help reduce outside distractions, while the alley adjusts in width and taper for calves through mature cattle.

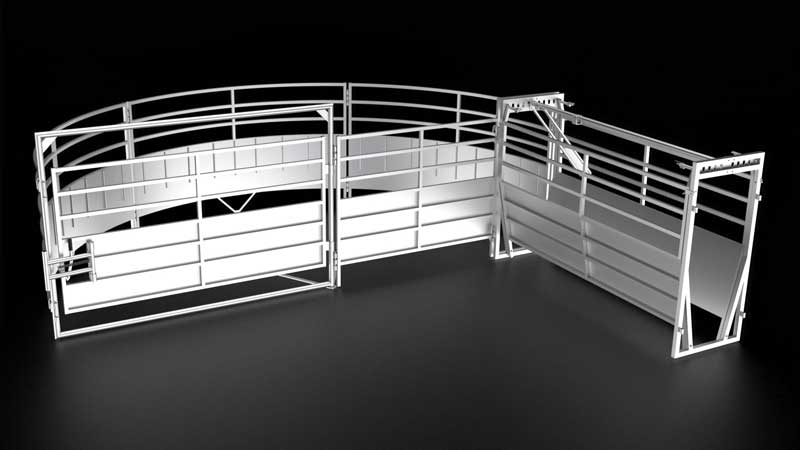

Ultimate Tub & Alley Package
Click image to enlarge
The sheeted crowding tub and lower alley sides help reduce outside distractions as cattle move through the system. Open upper rails preserve visibility and handler access, while the adjustable alley provides flexibility for working cattle of different sizes.
The half-circle crowding tub measures approximately 20' across by 10' deep. The lower portion of the tub panels and sweep gate is covered with 14-gauge galvanized sheet metal. Its spring-loaded locking sweep gate guides cattle toward the alley and discourages them from pushing the gate backward.
The alley adjusts from 18" to 32-1/4" wide to accommodate calves through mature cattle. Both sides adjust independently at the top and bottom, allowing the alley to maintain its built-in V-bottom or increase the taper when needed.
A chain-suspended no-back butt bar passes over cattle as they move forward and drops behind them to discourage backing out of the alley. Fishhook connections make the alley straightforward to connect to the crowding tub and compatible cattle-working equipment.
Palpation Cage - Adds protected access directly behind a compatible squeeze chute.
Additional 10' Adjustable Sheet-Metal Alley - Extends the included alley to 20' or longer.
Please Note: This package includes the crowding tub and alley only. A squeeze chute and palpation cage are not included in the base package price.
|
||||||
The crowding tub can be assembled in either a left- or right-hand configuration. When assembled opposite the configuration shown, the sheet metal will face the opposite direction; this does not affect the tub's operation.
The tub and alley ship unassembled; assembly is required.
Already have part of your cattle-working setup? Shop individual crowding tubs and cattle alleys below.
Guide cattle from your holding pen into the working alley with Red River Arenas' 180° Open Cattle Crowding Tub. The half-circle layout provides visibility throughout the tub and uses a locking sweep gate to move cattle toward the alley entrance.

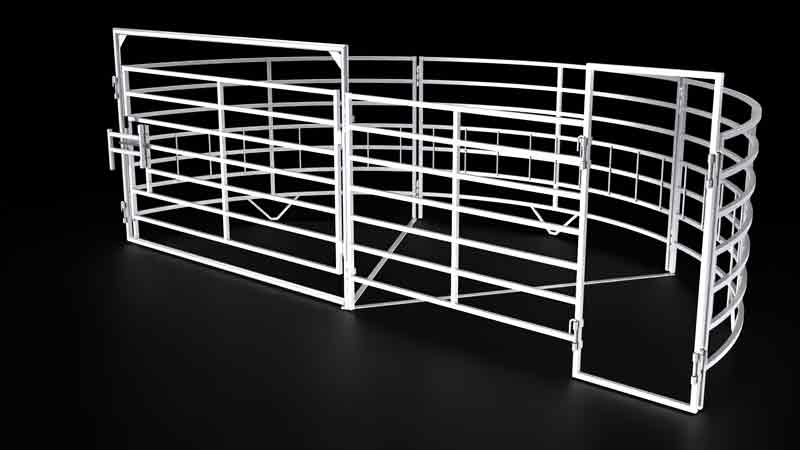

180° Open Cattle Crowding Tub
Click image to enlarge
Open rails allow handlers to see cattle throughout the tub. The galvanized steel construction includes curved perimeter panels, an open sweep gate, and a combo section for the alley connection.
The spring-loaded locking mechanism holds the sweep gate at positions around the tub. This prevents cattle from pushing the gate backward as they move toward the alley opening.
The straight side includes a gate, an approximately 8' panel section, and an approximately 2' opening for an alley connection. Connect a compatible existing alley or choose a Red River Arenas open, sheeted straight, or adjustable alley. When connecting another manufacturer's equipment, verify the opening dimensions and connection requirements before ordering.
Tub only. Alley and squeeze chute are not included.
|
||||||
The crowding tub can be assembled in either a left- or right-hand configuration to fit your cattle-working layout. No direction selection is required when ordering.
The tub ships unassembled; assembly is required.
Bring cattle from your holding pen into the working alley with Red River Arenas' 180° Sheeted Cattle Crowding Tub. The sheeted lower sides help reduce outside distractions, while the open upper rails preserve visibility into the tub.

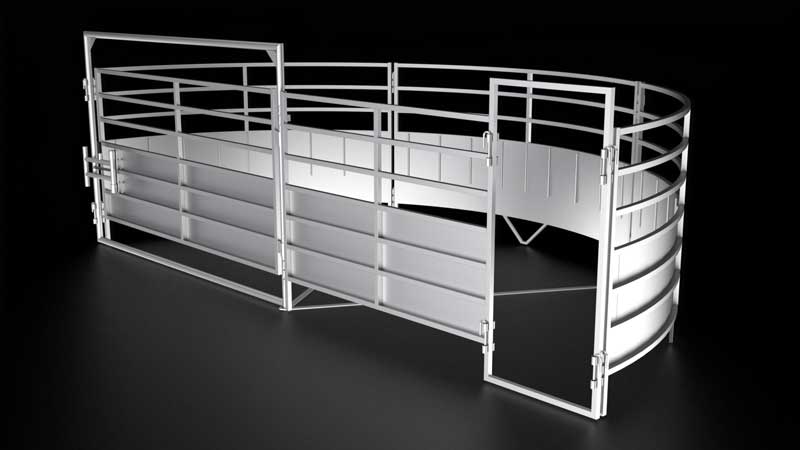

180° Sheeted Cattle Crowding Tub
Click image to enlarge
The lower portion of the tub panels and sweep gate is covered with 14-gauge galvanized sheet metal. The sheeted lower sides create a visual barrier that helps reduce outside distractions, while open upper rails provide visibility into the tub.
The sweep gate moves cattle toward the alley entrance. Its spring-loaded locking mechanism holds the gate at positions around the tub and prevents cattle from pushing it backward.
The straight side includes a gate, an approximately 8' panel section, and an approximately 2' opening for an alley connection. Connect a compatible existing alley, a Red River Arenas 10' Sheeted Straight Alley, or a 10' Adjustable Sheet Metal Cattle Alley.
Tub only. Alley and squeeze chute are not included.
|
||||||
The crowding tub can be assembled in either a left- or right-hand configuration. When assembled opposite the configuration shown, the sheet metal will face the opposite direction; this does not affect the tub's operation.
The tub ships unassembled; assembly is required.
Handle calves through mature cattle with one versatile straight alley. Red River Arenas' 10' Adjustable Sheet Metal Cattle Alley allows you to change the width and taper for the cattle being worked.

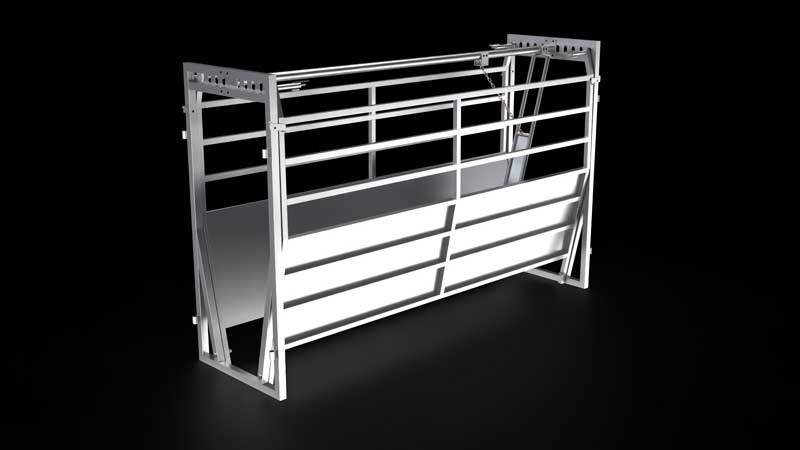

10' Adjustable Sheet Metal Cattle Alley
Click image to enlarge
Both side panels adjust independently at the top and bottom. Adjust one side or both sides to change the width, maintain the built-in V-bottom, or increase the taper when needed. Spring-loaded latches secure each panel within the adjustable end arches.
The lower portion of each alley panel is covered with 14-gauge galvanized sheet metal to create a solid visual barrier and reduce outside distractions. The upper portion remains open, providing visibility and access to cattle.
As cattle move forward, the chain-suspended butt bar passes over the animal and drops behind it to form a back block that discourages backing.
The alley connects to a Top Hand squeeze chute, cattle crowding tub, or another adjustable alley section using the included fishhook pins. Additional 10' sections can be added whenever a longer working alley is needed.
|
||||||
The alley ships unassembled; assembly is required.
Whether you're building a new cattle working facility, upgrading an existing setup, or adding a crowding tub and alley to your current squeeze chute, these answers will help you choose the right cattle working system for your ranch.
